100-3000kg/H Wood Pallet Crusher Wood Pallet Shredder Machine Wood Recycling Machine

Brand Name : SH

Model Number : SHTF1350, SH1300-600, SH1600-600

Certification : ISO9001

Place of Origin : Shandong Province, China

MOQ : 1 SET wood pallet grinder

Price : US $8,000-11,000 / Set

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 1000sets per year

Delivery Time : within 15 days

Packaging Details : container loading

Name : Wooden pallet grinder

Nails : with magnetic machine for sucking out nails

Application : crushing wood pallets into chippers

Capacity : 60pcs pallets/hour

Power : 37KW

Feeding inlet size : 1350*230mm

Blade shaft diameter : 450mm

Blade quantity : 36pcs

Discharging conveyor length : 3meters

Guarantee : 1year

Contact Now

Wood Pallet Crusher/Wood Pallet Shredder/industrial shredder for wood pallet

Wood Pallet Crusher

Technical data

Model	SHTF1350
Feeding Inlet	1350*230mm
Blade Shaft Diameter	450mm
Blade Quantity	36
Motor Power	37KW
Conveyor belt length	3000mm
Production Capacity	60 Pallets/Hour
Weight	3200KG
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor

Detailed Image

Optional -magnetic machine

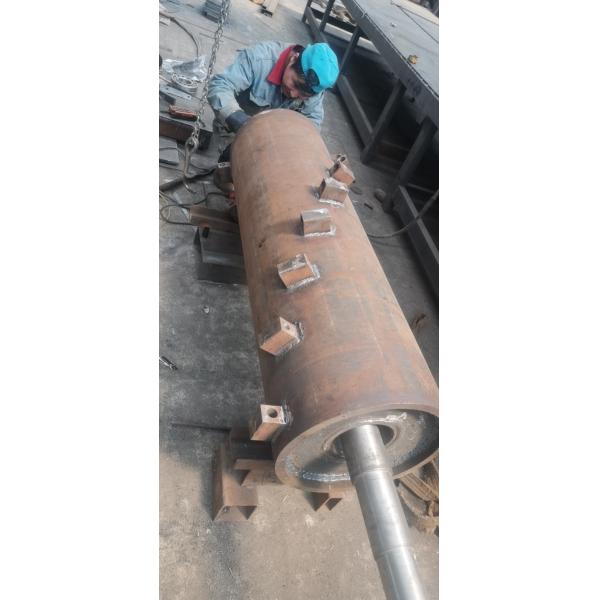

Roller and blades

Wood Chippers

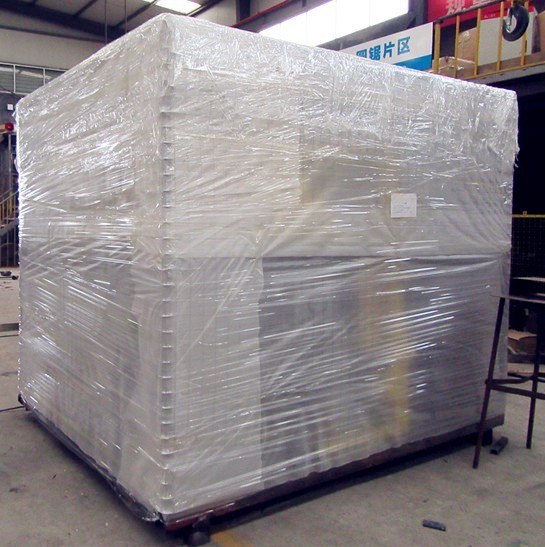

Export Pallet Packing

100-3000kg/H Wood Pallet Crusher Wood Pallet Shredder Machine Wood Recycling Machine

Related Products

Wood Composite Crusher

Specification	SH1300-600E	SH1300-600D
Feeding Inlet	1300*600mm	1300*600mm
Blade Roll Diameter	850mm	850mm
Blade Quantity	4 PCS	20 PCS
Blade Roll Speed	850R/Min	850R/Min
Max processing wood diameter	500mm	550mm
Wood Chipper Size	20-50mm	20-50mm
Production Capacity	15 Tons/Hour	15 Tons/Hour
Motor Power	160 KW Electric Engine	400HP Diesel Engine
Feeding Suspension Inverter Motor	7.5KW*1	7.5KW*1
Chain Plate Feeding Inverter Motor	11KW	11KW
Electromagnetic valve integrated Oil Pump Motor	3KW	3KW
Conveyor Gear Motor Power	4KW	4KW
Weight	20Tons	20Tons
Overall Size	850022002200mm	850022002200mm

100-3000kg/H Wood Pallet Crusher Wood Pallet Shredder Machine Wood Recycling Machine

STUMP CRUSHER

Specification:

Technical data	Model SH3600-1600
Blade shaft size	1600x850mm
Rotor diameter	800mm
Blade quantity	4
Main motor power	185KW
Feeding inlet diameter	3600mm
Out feed conveyor	12meters
Capacity	25-30Ton/Hour
Weight	18000kg

100-3000kg/H Wood Pallet Crusher Wood Pallet Shredder Machine Wood Recycling Machine

Wooden Pallet Dismanling Sawmill/Pallet Dismantler

Model	TP1400
Working Table Length	1700mm
Horizontal table width	1400mm
Cutting Thickness	5mm-150mm
Saw Wheel Diameter	600mm
Motor Power	7.5KW
Processing Pallet Efficiecy	40-60 pcs/min
Band Saw Blade Size	USA Blade 6850411.3 mm
Overall Size	330015001500mm
Weight	800KG

Detailed Image

Optional : protective cover
100-3000kg/H Wood Pallet Crusher Wood Pallet Shredder Machine Wood Recycling Machine
Optional : also make machine as customer needs
